NPL-7500X200
NPL-7500 provides full stroke force between 99,900 N (22,450 lbf) and 116,000 (26,080 lbf) and is available in 17 stroke lengths.
Strokes 25, 50, 80, 100, 125 and 160 are offered as a part of the HYSON Preferred Program which provides optimal delivery. Available flanges for the 7500 model are Circular Flange FC-7500, Upper Square Flange FCS-7500, and Lower Square Flange FFC-7500.

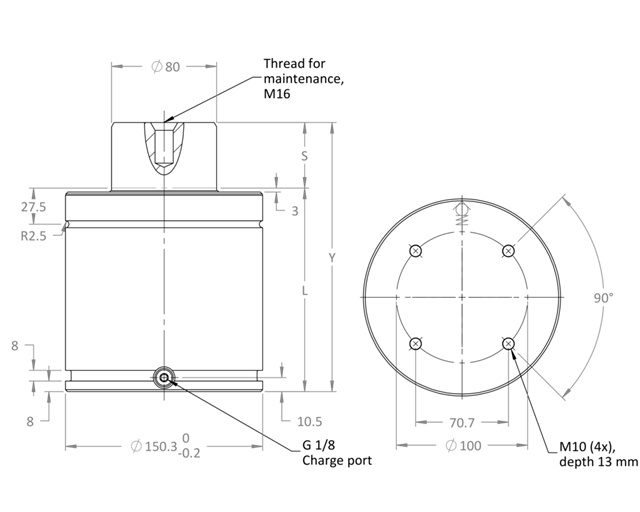

Diagram / specifications section
Preview
| L | Minimum Length (in) | 12.01 |
| S | Stroke Length (in) | 7.87 |
| Y | Total Length (in) | 19.88 |
Item specifications
- End Force At Full Stroke (LBF)25920
- Force Increase By Temperature Percent Per (°F)0.17
- Gas Volume (CuF)0.1165384
- Initial Force at max. pressure (lbf) 16900
- Max Charging Pressure (Psi)2175
- Max Piston Rod Velocity (FtMin)314.96
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)32
- Recommended Max Strokes Per Minute~15-40
- Weight (lb)57.42
