FCSC-7500
Upper Square Flange

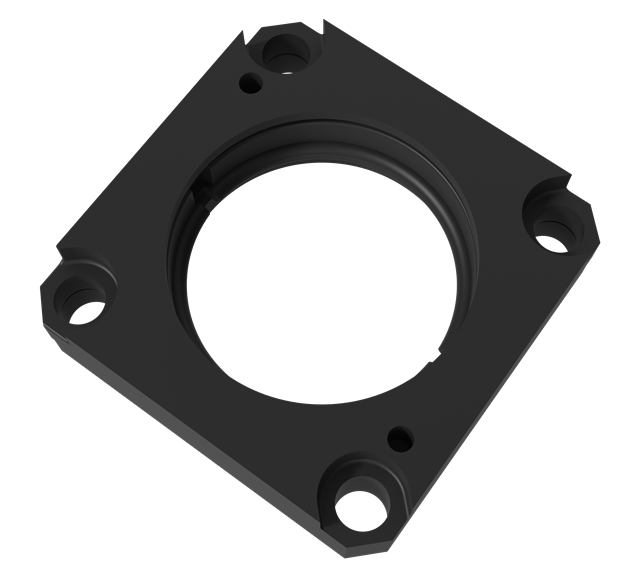

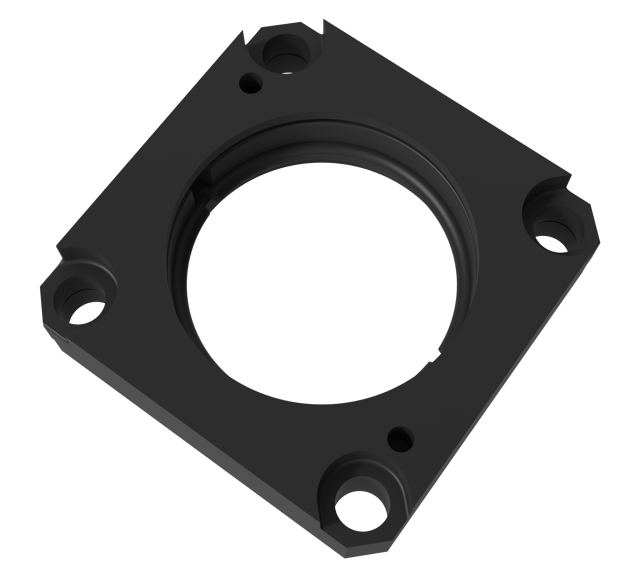

The FCSC Clamp Flange has a unique patented design that offers a very robust play-free connection between the gas spring and the mount. This play-free connection also prevents rotation of the gas spring.
The FCSC Clamp Flange is especially suitable for gas springs that will be hosed together and/or are used in high-speed, long-stroke upside-down installations.
The FCSC Clamp Flange is available for gas springs sizes from 500 up to 7,500.
Note: The FCSC and FCS flanges are fully interchangeable if low head cap mounting screws (4x) are used. Using low head cap screws ensures the top of the screw is flush with the top of the flange. If normal head cap screws are used, the top of the screw will protrude from the top of the flange by 3 mm.
The FCSC Clamp Flange is especially suitable for gas springs that will be hosed together and/or are used in high-speed, long-stroke upside-down installations.
The FCSC Clamp Flange is available for gas springs sizes from 500 up to 7,500.
Note: The FCSC and FCS flanges are fully interchangeable if low head cap mounting screws (4x) are used. Using low head cap screws ensures the top of the screw is flush with the top of the flange. If normal head cap screws are used, the top of the screw will protrude from the top of the flange by 3 mm.
Diagram / specifications section
Preview
Preview
| A | A (in) | 5.906 |
| B | B (in) | 6.378 |
| C | C (in) | 5.433 |
| D | D (in) | 0.65 |
| F | F (in) | 1.496 |
