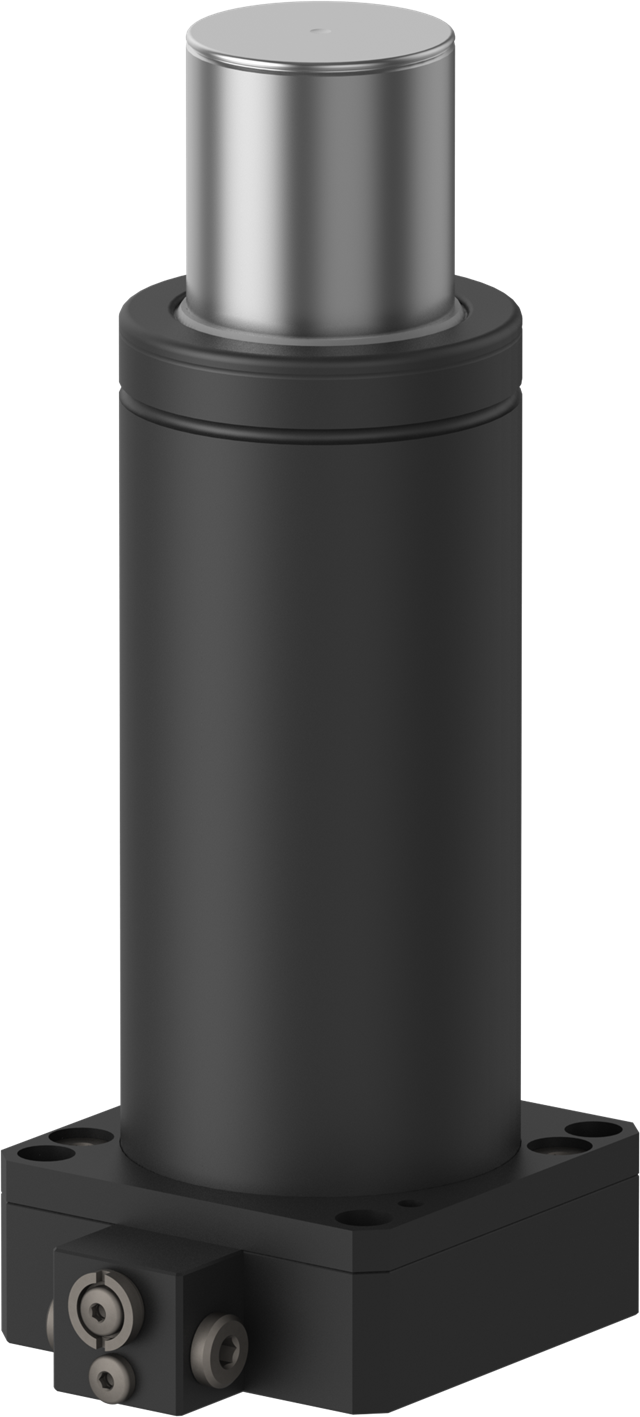

T4SC SPRM

The T4SC SPRM - Subcompact Contamination Resistant Nitrogen Gas Spring provides the HIGHEST force per body diameter. Ideal for full height, short stroke, high speed applications where hose system is required. The T4SC SPRM is equipped with a side port rear mount (SPRM) for applications where a sideport is needed (e.g., for use in hose systems). Available in forces from 4,226 N (950 lbf) to 183,000 N (41,140 lbf), T4SC springs are bore seal gas springs that protect the sealing surface against contamination, even in instances of marred rods. T4SC SPRM gas springs can be hosed together and charged remotely using a control panel and hose system. Optional Side Port Plate is required for hosed systems. Standard range of stroke lengths is 10mm-50mm for Models 420 through 1800. Stroke lengths up to 65mm are available for Models 2900 - 18300.
