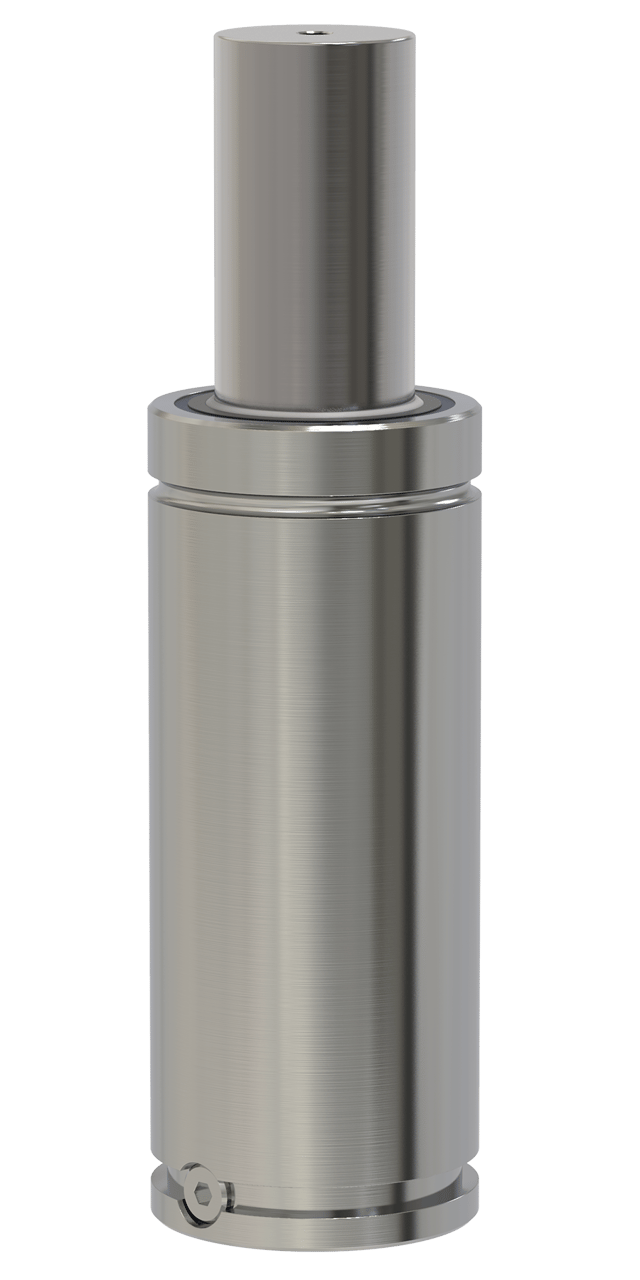

The T4 Series provides SUPER-HIGH force with flexible guide to absorb lateral movement and misalignment in dies. They are ideal for stamping ultra-high strength steels.
Available in forces from 7400 N (1,665 lbf) to 200,000N (45,000 lbf), Range of stroke lengths for model 750 is 12.7 mm to 200 mm. Range of stroke lengths for models 1000 and 1500 is 12.7mm to 300 mm. Range of stroke lengths for models 2400 through 20000 is 25 mm to 300 mm. A variety of mounting options are available which utilize the uppper C-groove and lower U-groove.
|Force increase by temperature (%/ °C)||0.3|
|Max. charging pressure (bar at 20°C)||150|
|Min. operating temperature (°C)||0|
|Max. operating temperature (°C)||80|
|Max. piston rod velocity (m/s)||1.6|
|Gas spring models||Available stroke lengths (mm)||Contact Force at max. pressure (N)||Cylinder diameter (mm)||Min. charging pressure (at 20 °C)||Recommended max. strokes/min. (at 20 °C)|
