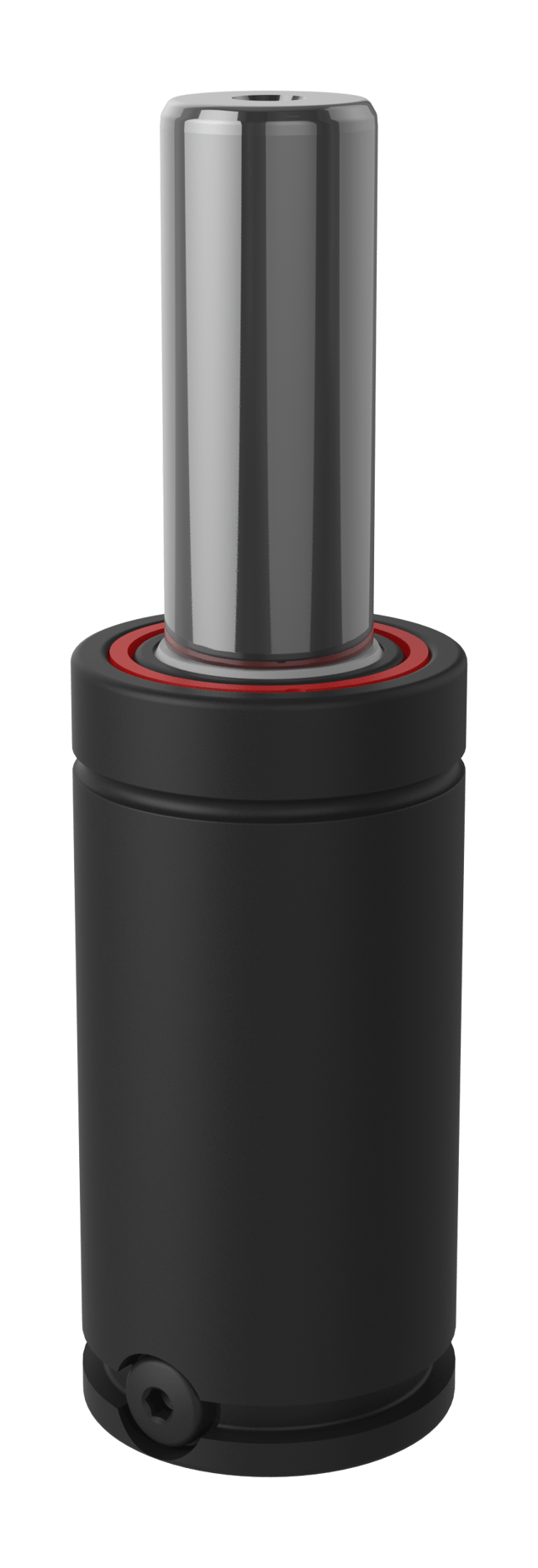

T3M 300

T3M-300 is available in 11 stroke lengths.

Working temperature interval, maximum strokes per mine and maximum charge pressure may vary by temperature.

Specifications

Min. charging pressure (bar at 20°C) 25
Max. charging pressure (bar at 20°C) 150
Contact Force at max. pressure (N) 3000
Contact Force at max. pressure (lbf) 675
Recommended max. strokes/min. (at 20°C) 20
Cylinder diameter (mm) 32
Charge port M6
Repair kit 3322687
Min. operating temperature (°C) 0
Max. operating temperature (°C) 120
Max. piston rod velocity (m/s) 1
Force increase by temperature (%/ °C) 0.3

Dimensions

Product Stroke (S) Cylinder Height (Y) ±0.25 Body Height (L)
T3M-300X10 10 50 40
T3M-300X13 13 56 43
T3M-300X16 16 62 46
T3M-300X19 19 68 49
T3M-300X25 25 80 55
T3M-300X32 32 94 62
T3M-300X38 38 106 68
T3M-300X50 50 130 80
T3M-300X63 63 156 93
T3M-300X75 75 180 105
T3M-300X80 80 190 110

Flanges

Mounting flanges

Top mount
FC, FCS
Foot mount
FFC
Body mount
HMF, S
Product Stroke (S) (mm) Full Stroke Force (N) Full Stroke Force (lbf) Gas volume (l) Weight (kg)
T3M-300X10 10 4917 1108 0.01 0.17
T3M-300X13 13 4333 992 0.01 0.17
T3M-300X16 16 4417 1008 0.01 0.19
T3M-300X19 19 4667 1050 0.01 0.2
T3M-300X25 25 4583 1050 0.02 0.21
T3M-300X32 32 4583 1050 0.02 0.23
T3M-300X38 38 4583 1033 0.03 0.25
T3M-300X50 50 4667 1050 0.03 0.29
T3M-300X63 63 4583 1050 0.04 0.33
T3M-300X75 75 4583 1050 0.05 0.36
T3M-300X80 80 4583 1033 0.05 0.38
