MP-5000

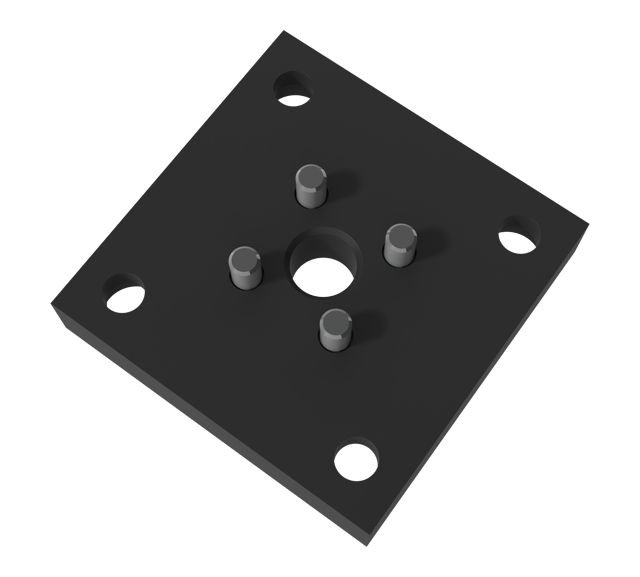

Bottom Mounting Plate
MP is a square base mount to mount the gas spring to the tool by using the bottom threads of the gas spring
into the tool. MP meets the ISO 11901-2, GM 90.25 and other standards.

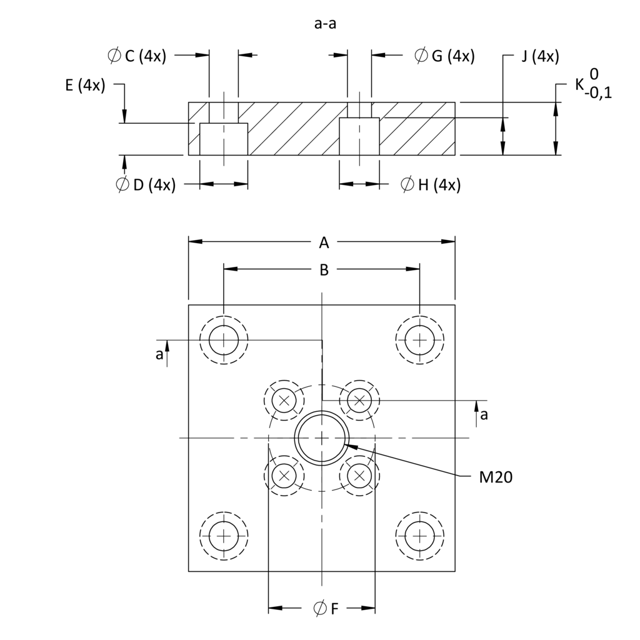

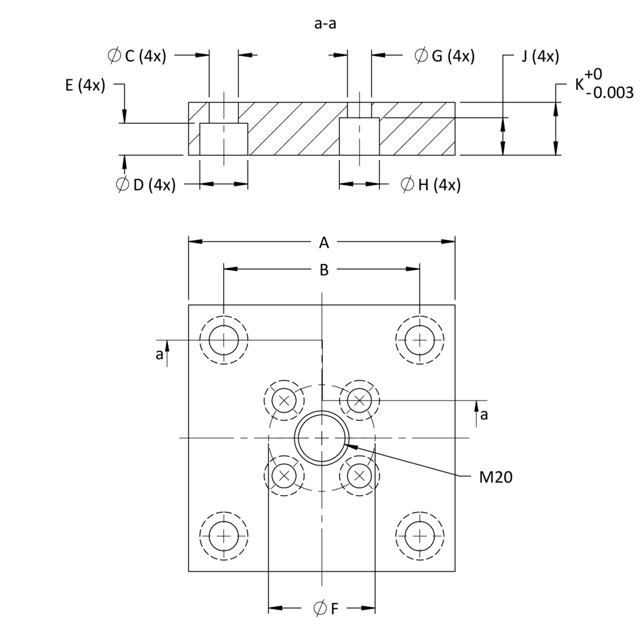

Diagram / specifications section
Preview
Preview
| A | A (in) | 5.512 |
| B | B (in) | 0,17 |
| C | C (in) | 0,531 |
| D | D (in) | 0.787 |
| E | E (in) | 0.512 |
| F | F (in) | 3.15 |
| G | G (in) | 0.433 |
| H | H (in) | 0.709 |
| J | J (in) | 0.591 |
| K | K (in) | 0.787 |
