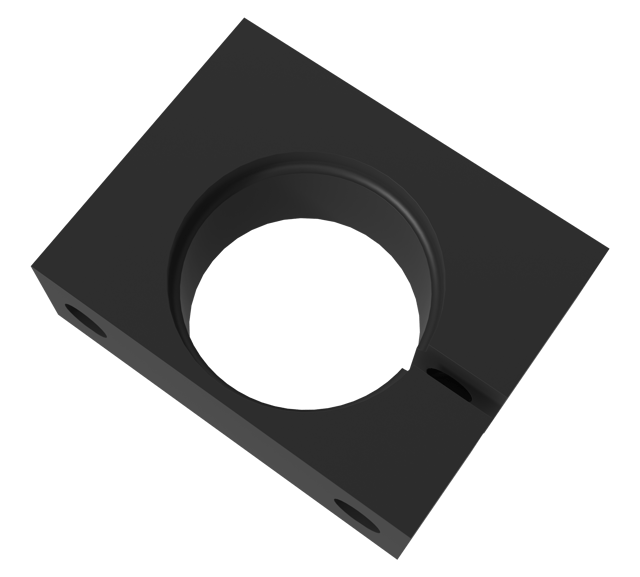

HMF-750
HMF is a Horizontal Body Flange
The HMF mount is a symmetric horizontal body mount similar to the S mount. The HMF mount meets the VDI 3003, Ford WD-X35-62 and GMDS 90.25.455 standard.

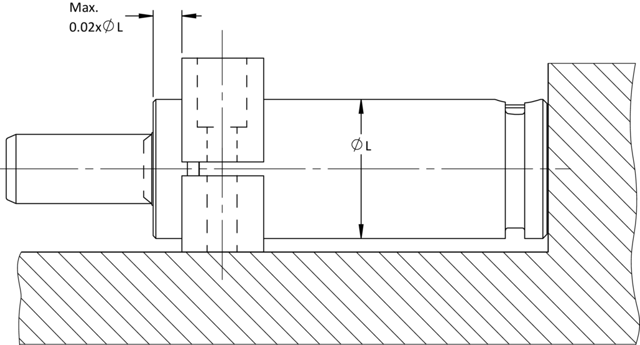

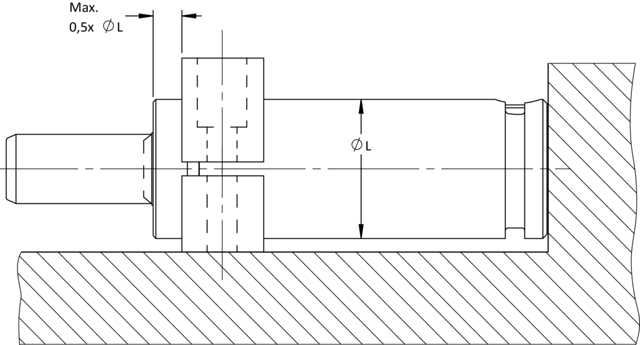

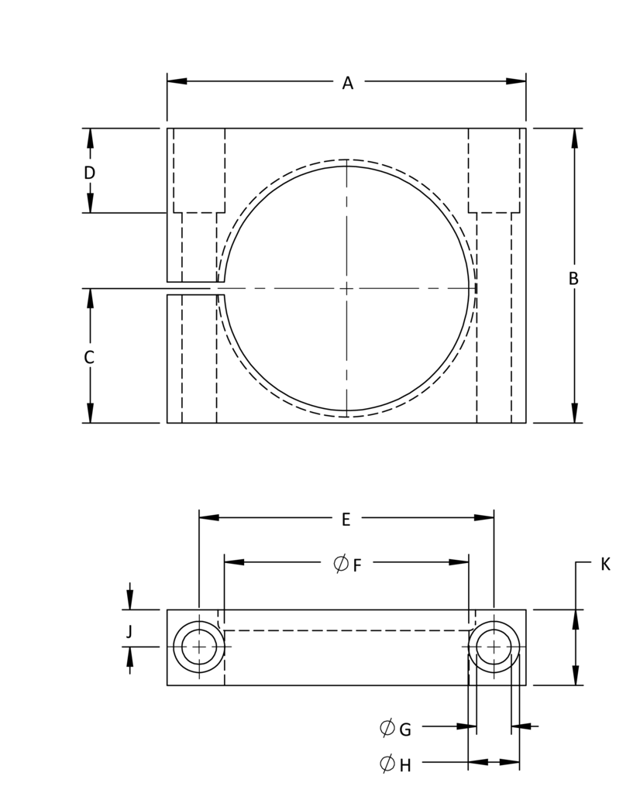

Diagram / specifications section
Preview
Preview
Preview
| A | A (in) | 3.543 |
| B | B (in) | 2.756 |
| C | C (in) | 1.181 |
| D | D (in) | 0.984 |
| E | E (in) | 2.677 |
| F | F (in) | 1.984 |
| G | G (in) | 0.433 |
| H | H (in) | 0.709 |
| J | J (in) | 0.591 |
| K | K (in) | 1.181 |
| L | L (in) | 1.976 |
