FFC-7500

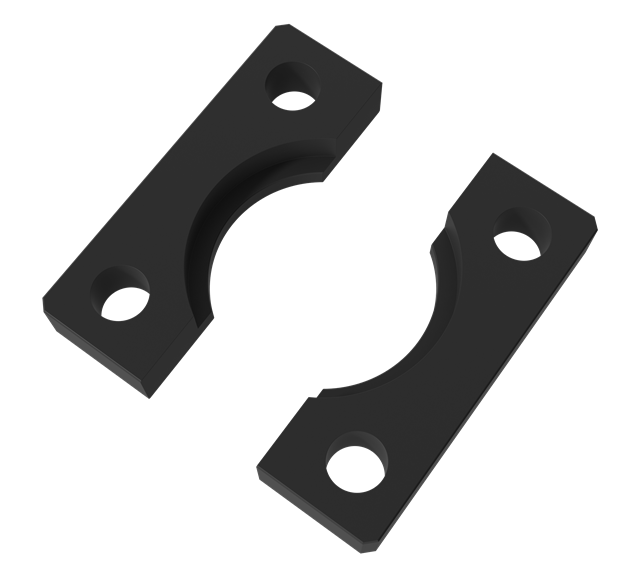

Lower Square Flange
FFC is a foot mount used to clamp the base of the gas spring
to the tool by using U-groove of the gas spring. FFC meets the ISO 11901-2, VDI 3003, Ford WDX35-62, GM 90.25 and other standards.
Diagram / specifications section
Preview
Preview
Preview
| A | A (in) | 7.48 |
| B | B (in) | 5.433 |
| C | C (in) | 7.685 |
| D | D (in) | 0.689 |
| E | E (in) | 0.945 |
| F | F (in) | 0.472 |
