BF-18300

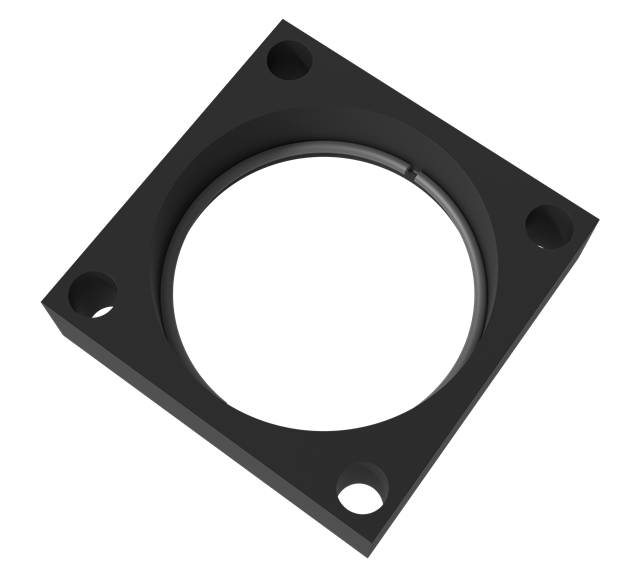

Square Base Mount Flange
BF is a flange mount used to clamp the base of the gas spring
to the tool by using the lower C-groove of the gas spring.
Diagram / specifications section
Preview
Preview
Preview
Preview
| A | A (in) | 6.378 |
| B | B (in) | 5.433 |
| C | C (in) | 1.358 |
| D | D (in) | 0.689 |
