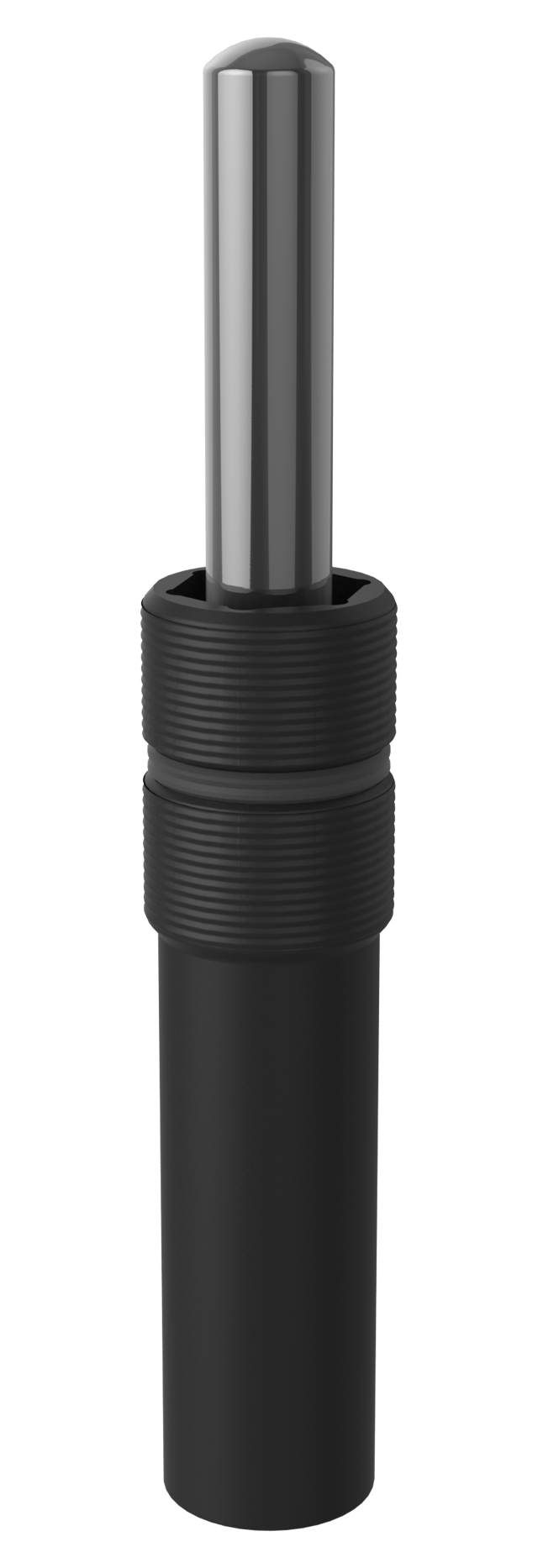

T2M

/globalassets/inriver/resources/imageimage/singleimagesingle-image/hyson_t2m_24_prod.png

Ideal for higher working temperatures (up to 120°C / 248°), like plastic injection mold tooling applications; lower force applications.

Available in forces from 420N (95lbf) to 3,000N (675 lbf), T2M springs have threaded upper body design for easy and adjustable mounting. Standard range of stroke lengths is 10mm to 80 mm.

Specifications

Pressure medium Nitrogen
Force increase by temperature (%/ °C) 0.3
Max. charging pressure (bar at 20°C) 150
Min. operating temperature (°C) 0
Max. operating temperature (°C) 120
Max. piston rod velocity (m/s) 1
