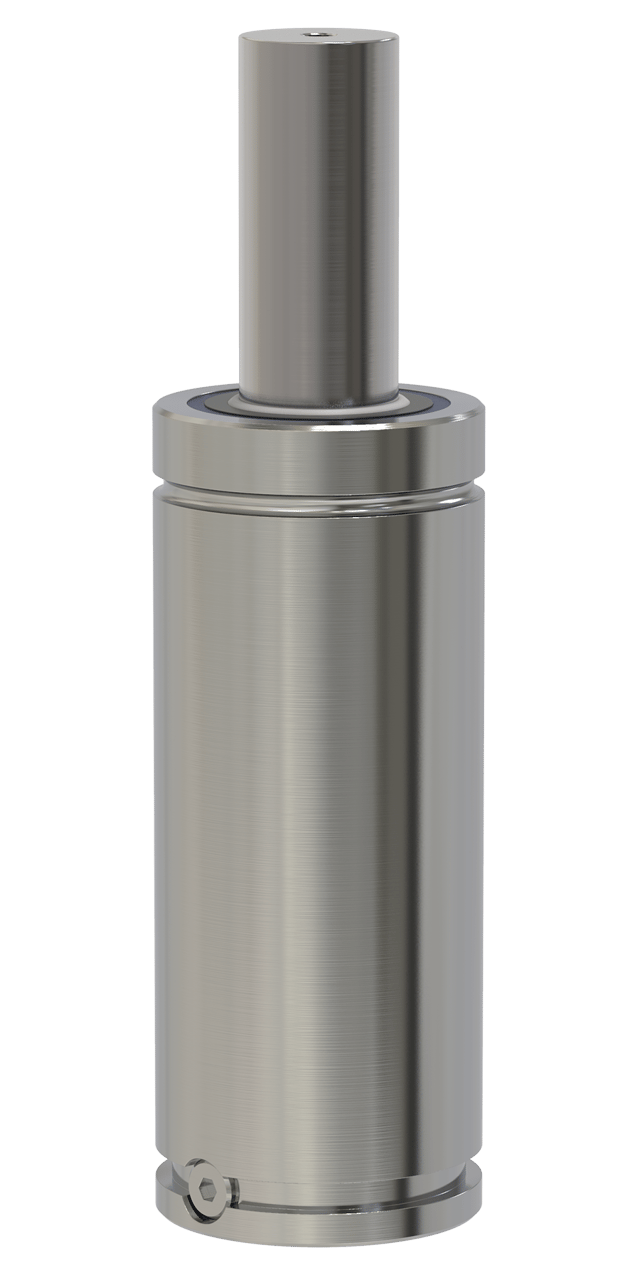

Available in contact forces of 7,400 N and up to 50,000 N, SRS gas springs significantly reduce pad bounce on the return stroke (dampening length 30mm.) SRS springs also reduce shock loading inside the die. The SRS Series are ideal for part position control in fast return stroke applications in transfer presses or line dies.
Easily retrofittable with standard mounts, springs can aslo be together to equalize force. Multiple installation options.
|Force increase by temperature (%/ °C)||0.3|
|Max. charging pressure (bar at 20°C)||150|
|Min. operating temperature (°C)||0|
|Max. operating temperature (°C)||80|
|Max. piston rod velocity (m/s)||1.6|
|Gas spring models||Available stroke lengths (mm)||Contact Force at max. pressure (N)||Cylinder diameter (mm)||Min. charging pressure (at 20 °C)||Recommended max. strokes/min. (at 20 °C)|
|SRS 750||80-300||7400||75||25||See download tab*|
|SRS 1500||125-300||15000||95||25||See download tab*|
|SRS 3000||125-300||30000||120||25||See download tab*|
|SRS 5000||125-300||50000||150||25||See download tab*|
