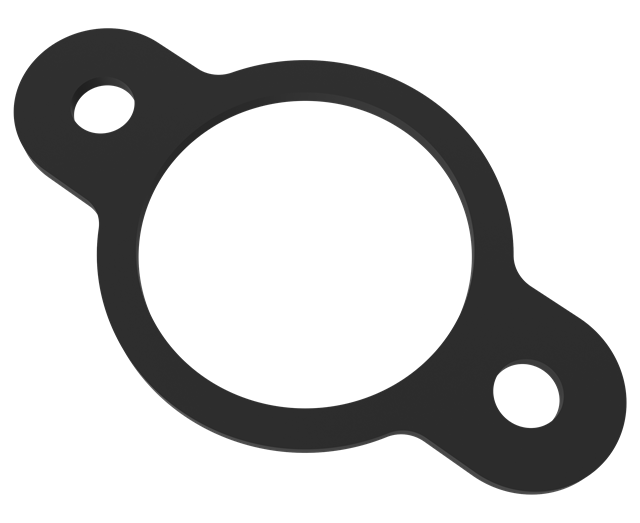

L-5000
When fixing gas springs vertically using 2 LM-lugs, locking plate L must be used at the same time to ensure that the spring is fixed radially.
When fixing gas springs vertically using 2 LM-lugs, locking plate L must be used at the same time to ensure that the spring is fixed radially.
Diagram / specifications section
Preview
| A | A (in) | 8.071 |
| B | B (in) | 6.102 |
| C | C (in) | 1.969 |
| D | D (in) | 0.669 |
| E | E (in) | 5.157 |
| F | F (in) | 0.65 |
| G | G (in) | 0.098 |
