FCS-3000

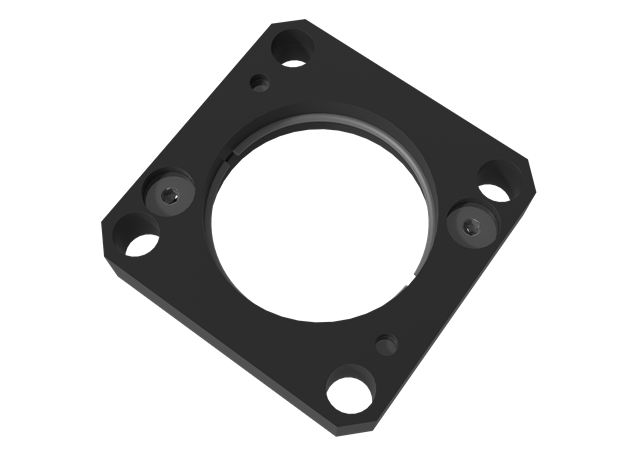

Upper Square Flange
FCS is a square flange mount used to mount the gas spring in the upper C-groove.
FCS meets the ISO 11901-2, VDI 3003, Ford WDX35-62, GM 90.25 and other standards.
FCS meets the ISO 11901-2, VDI 3003, Ford WDX35-62, GM 90.25 and other standards.
Diagram / specifications section
Preview
Preview
Preview
| A | A (in) | 5.118 |
| B | B (in) | 4.331 |
| C | C (in) | 3.622 |
| D | D (in) | 0.531 |
| E | E (in) | 0.709 |
| F | F (in) | 1.299 |
