BFP-4700

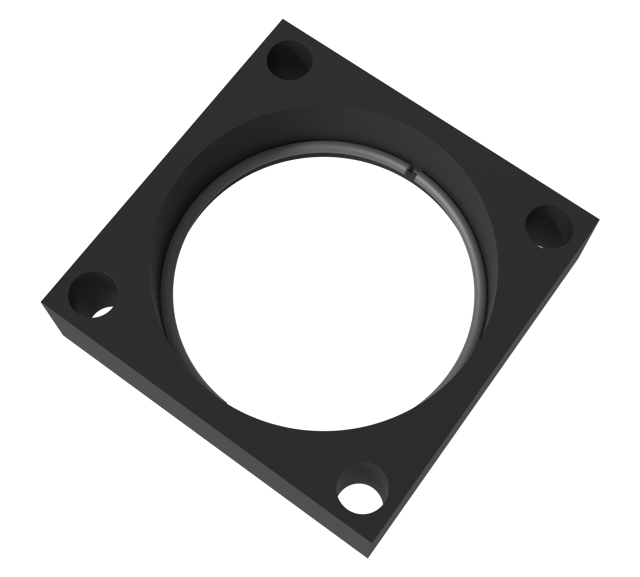

Bottom Square Flange
BFP is a flange mount used to clamp the base of the gas spring to the tool by using the lower C-groove of the gas spring.

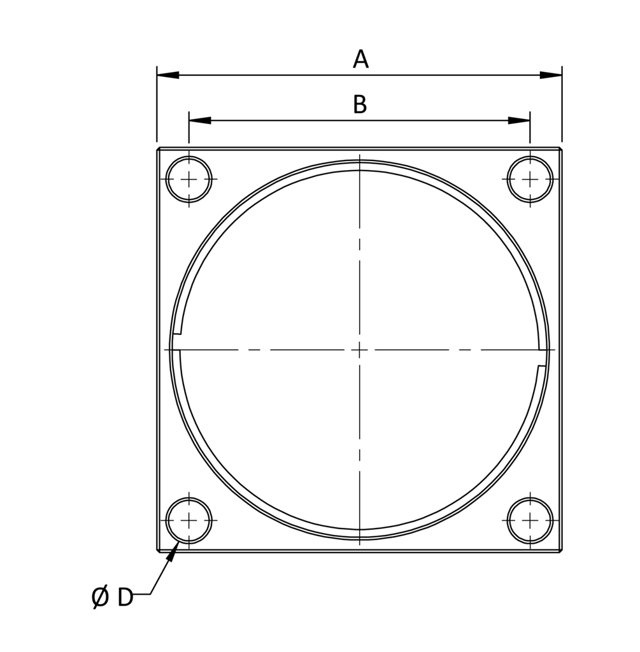

Diagram / specifications section
Preview
Preview
| A | A (in) | 3.543 |
| B | B (in) | 2.894 |
| C | C (in) | 0.965 |
| D | D (in) | 0.433 |
