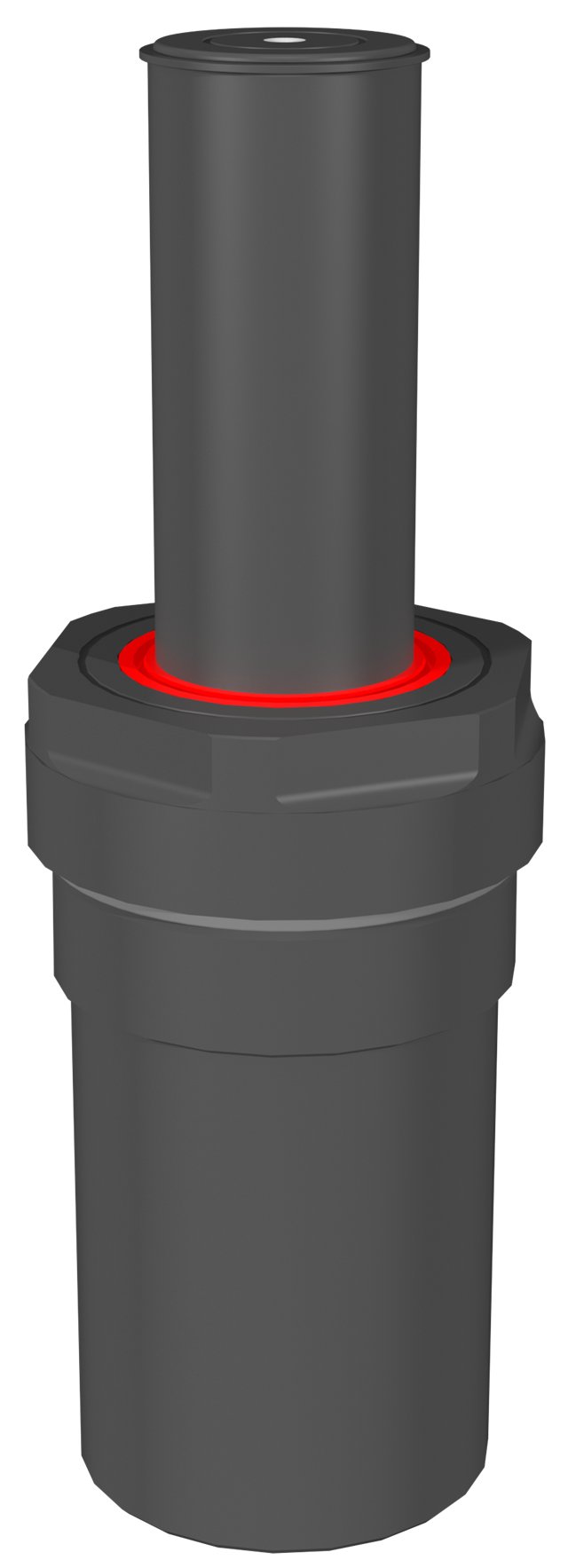

MOR 5200 X 50
MOR 5200 systems are available in 4 stroke lengths and provide consistent force for reliable part quality and minimal pressure rise for improved part formability. Cylinders have external hex for easy installation and removal.
Also available at 125 Bar(1812 PSI). Contact HYSON Inside Sales Team for information
Diagram / specifications section
Preview
| Cylinder Diameter (In) | 3.56 | |
| Manifold Thread | M82 x 2 | |
| A | Min Length Above Plate (in) | 1.22 |
| Stroke Length (in) | 1.96 | |
| Y | Total Length above Plate (in) | 3.34 |
Item specifications
- Initial Force at max. pressure (lbf) 11779.98
- Max Charging Pressure (Psi)2175
- Max. Operating Temperature (F)176
- Min Charging Pressure (PSI)362
- Min. Operating Temperature (F)77
- Weight (lb)1.97
